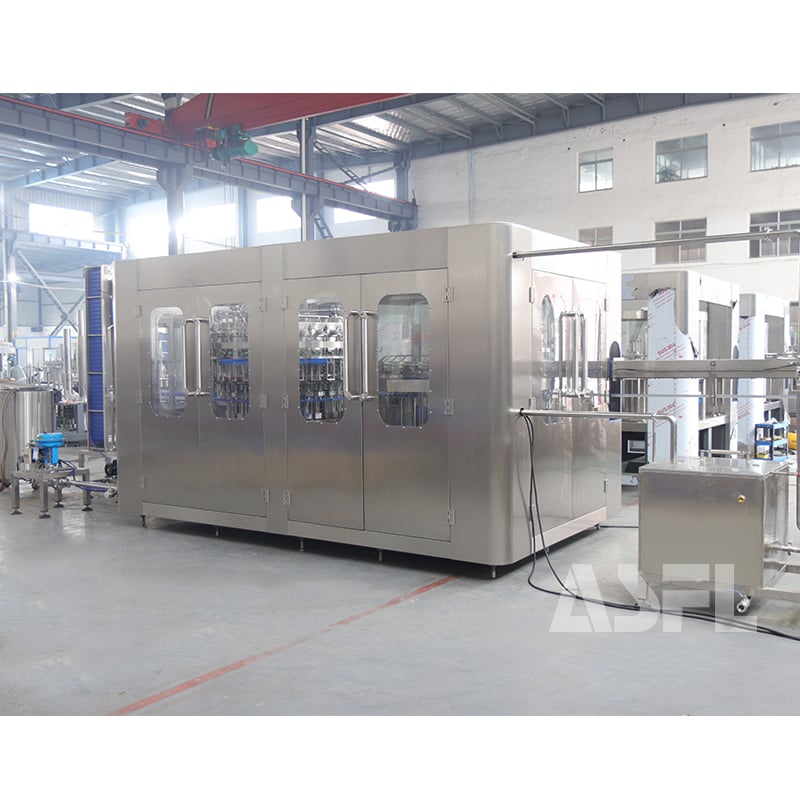

Carbonated glass bottle filling machine

Experience ultimate efficiency with our 3 in 1 glass bottle filling machine, designed for filling a diverse range of beverages from fruit juice to alcoholic drinks. Equipped with vacuum filling technology, automatic valve closing, and hot water bubble capping, our machine ensures accurate filling and superior hygiene standards. Suitable for glass round or square bottles, our filling methods include mechanical valve, flow meter, weight-based, and laser level filling, catering to varying production needs with capacities ranging from 3500-18000 BPH.

Overview
Related Products

Carbonated glass bottle filling machine

Suitable Products: Carbonated soft drinks/ Beer/ Fruit juice/ sparkling water/ wine etc.

Suitable Containers: Glass round or square bottle

Filling Methods: Mechanical valve filling, flow meter filling, weight-based filling, or laser level filling

Production Capacity: 3500-18000BPH

Carbonated glass bottle filling machine

Model	2016 /12/ 6	18 -18 -6	24 -24 -8	32 -32- 10	40 -40 -12
Capacity (for 500 ml)	3 500 -4 000	4 500 -6 000	8 000 -12 000	12 000 -14 000	15 000 -18 000
Suitable bottle shapes	Glass round or square bottle
Bottle volume	200 -2000 ml
Bottle height	160 -320 mm
Compressor air	0.3 -0.7 Mpa
Washing meidium	Aseptic water
Rinsing pressure	>0.06 Mpa <0.2 Mpa
Total power (KW)	4. 61	4. 61	5. 41	6. 41	9. 63
Machine dimensions (m)	2.5* 1.9	2.8* 2.15	3.1* 2.5	3.8* 2.8	4.5* 3.3
Height (m)	2. 5	2. 5	2. 5	2. 5	2. 6
Weight (kg)	3 200	4 000	4 500	6 500	8 000

Detailed description

The series of 3 in 1 glass bottle filling machines is specially used for glass filled various fruit juice, flavour drinks,beer, carbonated soft drinks dairy drinks, soybean milk, ice tea drinks, wine, alcoholic beverages, vodka, nectar and other still beverage fillings. Filling with one or two times vacuum technology, with bottle automatic valve closing and washing broken glass function, before capping using hot water bubble and other functions.
