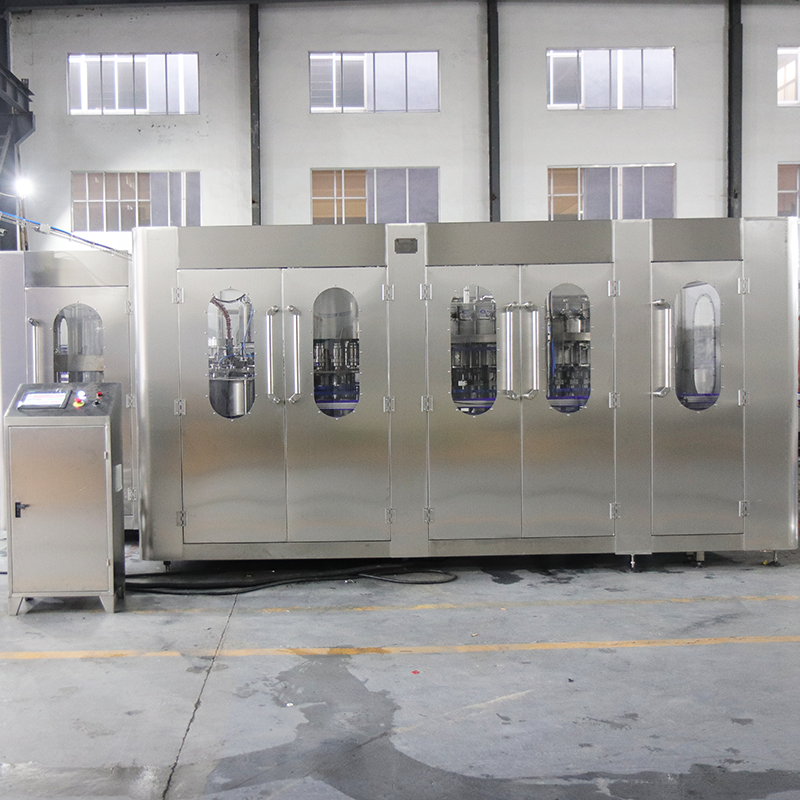

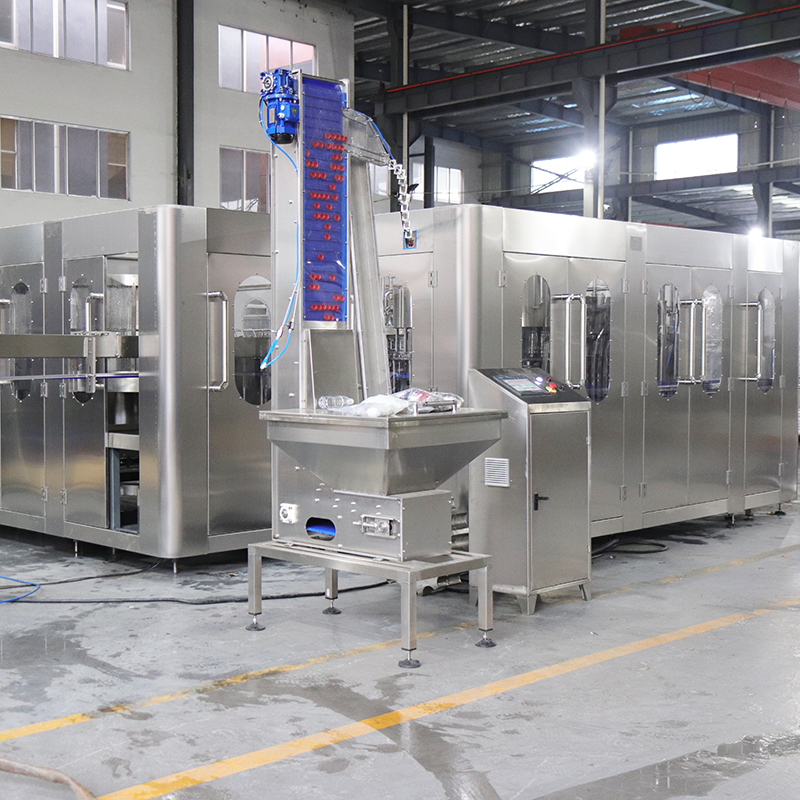

Carbonated Soft Drink Filling Machine
Applicable Products： Cola, soft drinks, gas soda, etc.
Suitable Container： PET bottles of various shapes and capacities
Filling Mode： Mechanical valve filling or electronic valve filling
Production Capacity：2000 – 24000 BPH
Technical specification
| Model | DC GF 16 - 12 - 6 | DC GF18 - 18 - 6 | DC GF 24 - 24- 8 | DC GF 32 - 32 - 10 | DC GF 40 - 40 - 12 | DC GF 50 - 50 - 12 | DC GF 60 - 60 - 15 |
| Capacity (for 500 ml) | 3 500 - 4 000 BPH | 4 500 - 6 000 BPH | 8000 - 12000 BPH | 12 000 -14 000 | 15 000 - 18 000 | 21 000 - 24 000 | 26 000 - 30 000 |
| Suitable bottle shapes | Circular or square | ||||||
| Suitable bottle (mm) | (Diameter) φ50 - . φ108 mm (Height) : 150 - 310 mm | ||||||
| Rinsing pressure | >0.06Mpa <0.2Mpa | ||||||
| Filling pressure | <0.4 Mpa | ||||||
| Total power (KW) | 4. 24 | 5. 03 | 6. 57 | 8. 63 | 9. 63 | 12. 5 | 15 |
| Overall dimensions (m) | 2.1 * 1.6 | 2.45 * 1.8 | 2.5 * 2.1 | 3.5 * 2.3 | 4 * 3 | 5.5 * 4.5 | 7 * 6.5 |
| Height (m) | 2. 2 | 2. 2 | 2. 2 | 2. 25 | 2. 25 | 2. 25 | 2. 25 |
| Weight (kg) | 2 500 | 3 500 | 4 500 | 6 000 | 8 000 | 10 500 | 13 000 |
Detailed description

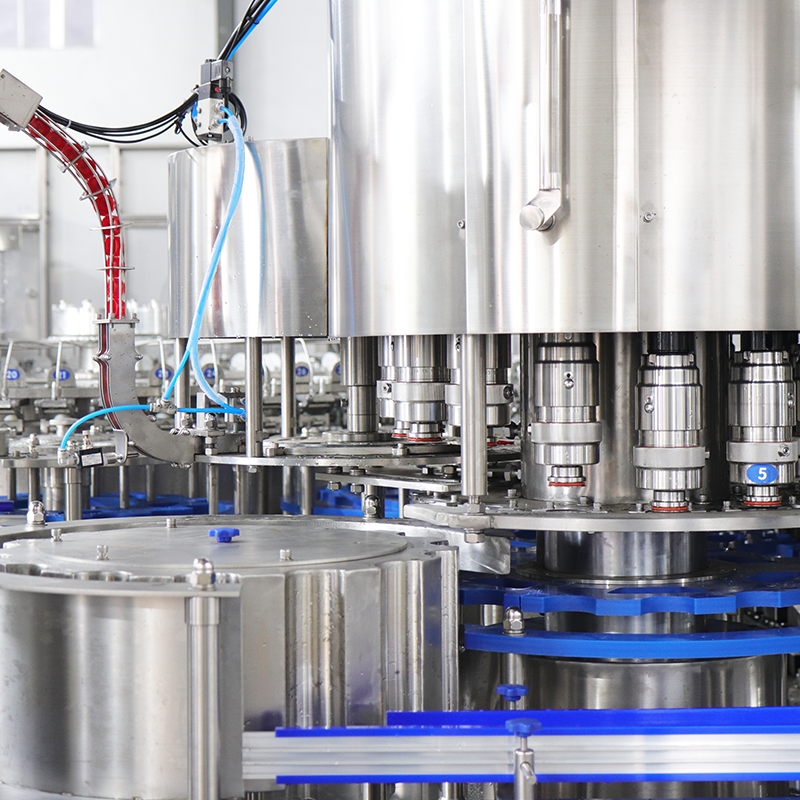

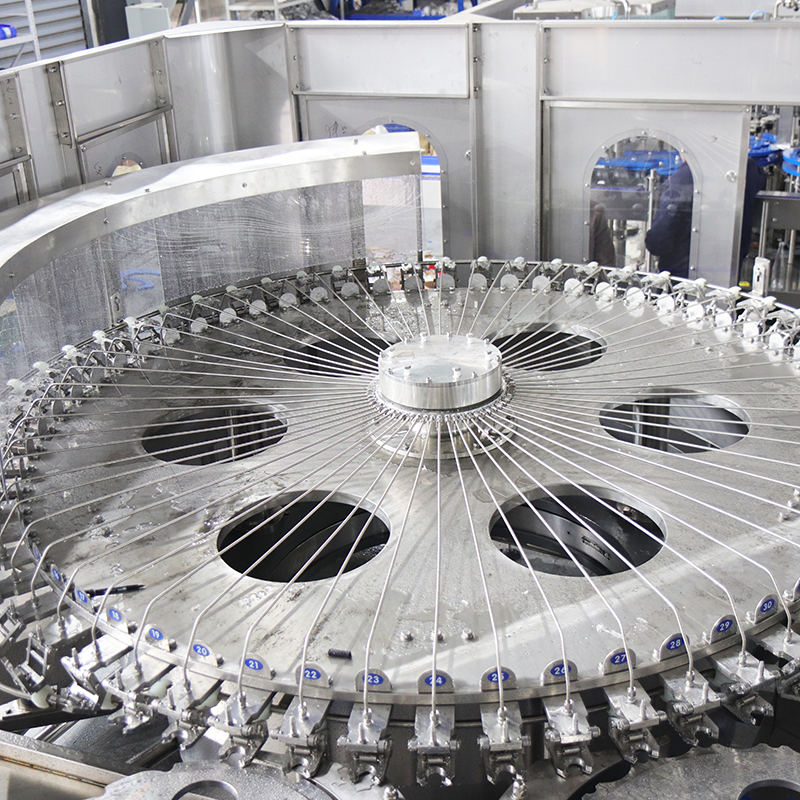

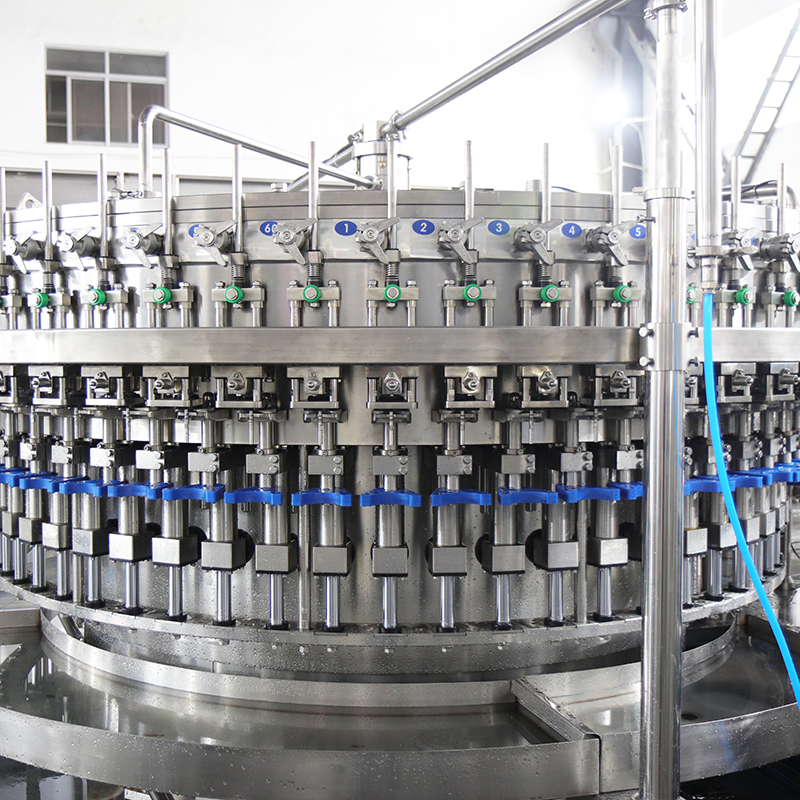

The carbonated beverage filling machine is designed to efficiently handle the unique requirements of carbonated drinks, integrating rinsing, filling, and capping into a single, streamlined system. It offers high precision and speed while preserving carbonation levels and minimizing product loss. Capable of filling a variety of carbonated beverages, including soft drinks and energy drinks, the machine adapts to different bottle sizes and shapes. Featuring advanced technology to manage carbonation, user-friendly controls, and robust construction, it ensures reliable performance and easy operation. Its hygienic design and safety features further enhance its suitability for high-quality beverage production.
Advantages of the Automatic Liquid Filling Machine
High Efficiency: Automatic liquid filling machines significantly increase production speed and efficiency, reducing the time required to fill containers compared to manual methods.
Precision and Consistency: These machines ensure accurate and consistent filling volumes, minimizing product waste and ensuring uniformity across all filled containers.
Versatility: Designed to handle various types of liquids, from water and juice to more viscous substances, automatic liquid filling machines can be easily adjusted to accommodate different product requirements.
Hygiene and Safety: With automated systems, there is less human contact with the product, which enhances hygiene and reduces the risk of contamination. Additionally, safety features are often built into the machines to protect operators.
Scalability: Automatic liquid filling machines can be easily integrated into larger production lines and scaled up to meet increasing production demands.
Reduced Labor Costs: By automating the filling process, businesses can reduce labor costs and reallocate workforce to other areas of production that may require human intervention.
Ease of Operation and Maintenance: Modern automatic liquid filling machines come with user-friendly interfaces and require minimal maintenance, making them easy to operate and maintain over time.
Customizability: These machines can be customized to fit specific production needs, including different bottle sizes, shapes, and materials, providing flexibility for manufacturers.
