Juice Tea Hot Filling Machine
- Overview
- Related Products

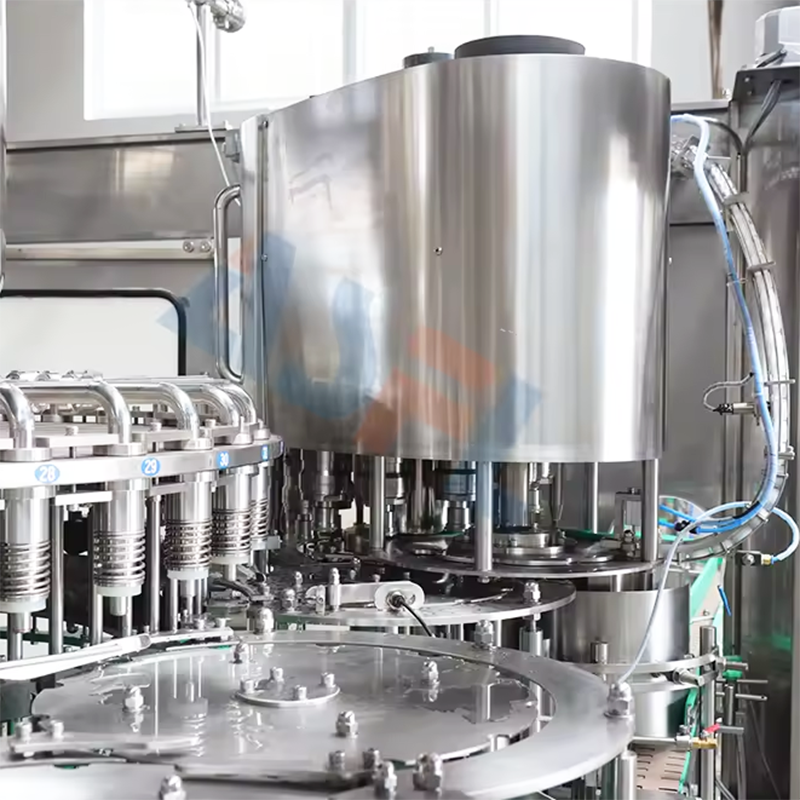

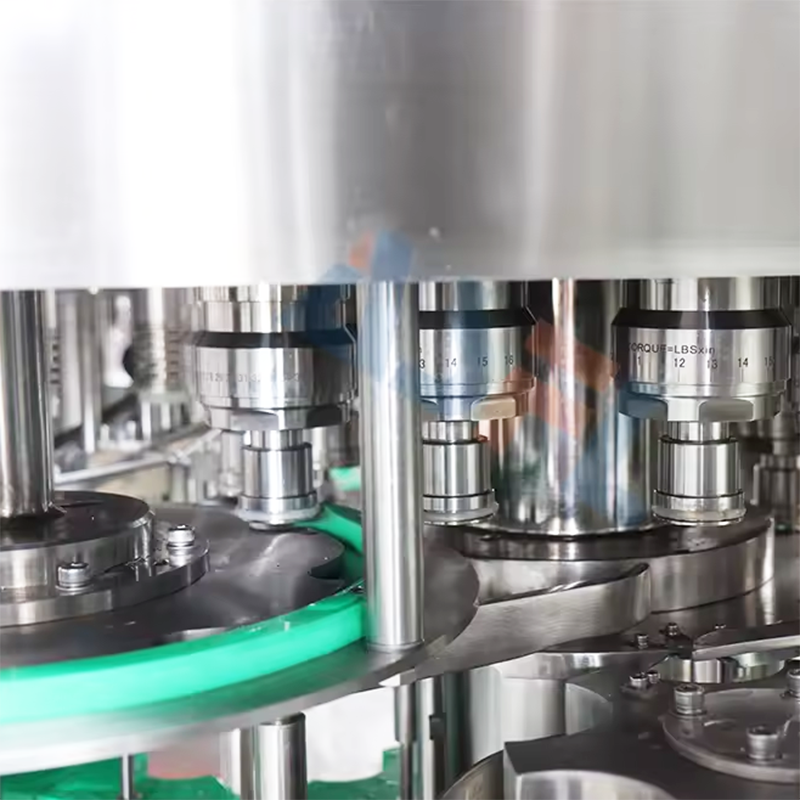

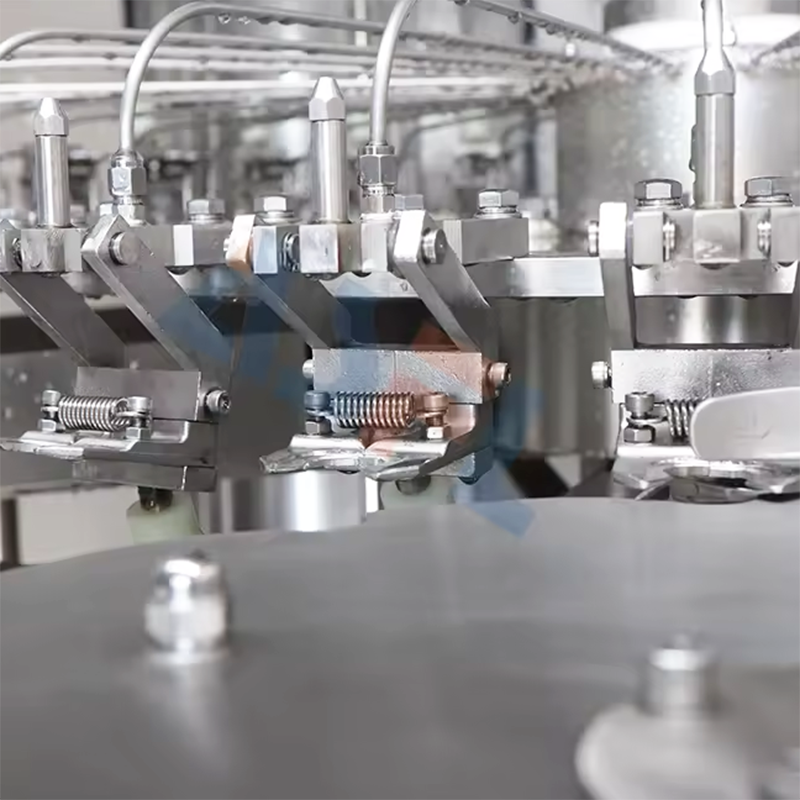

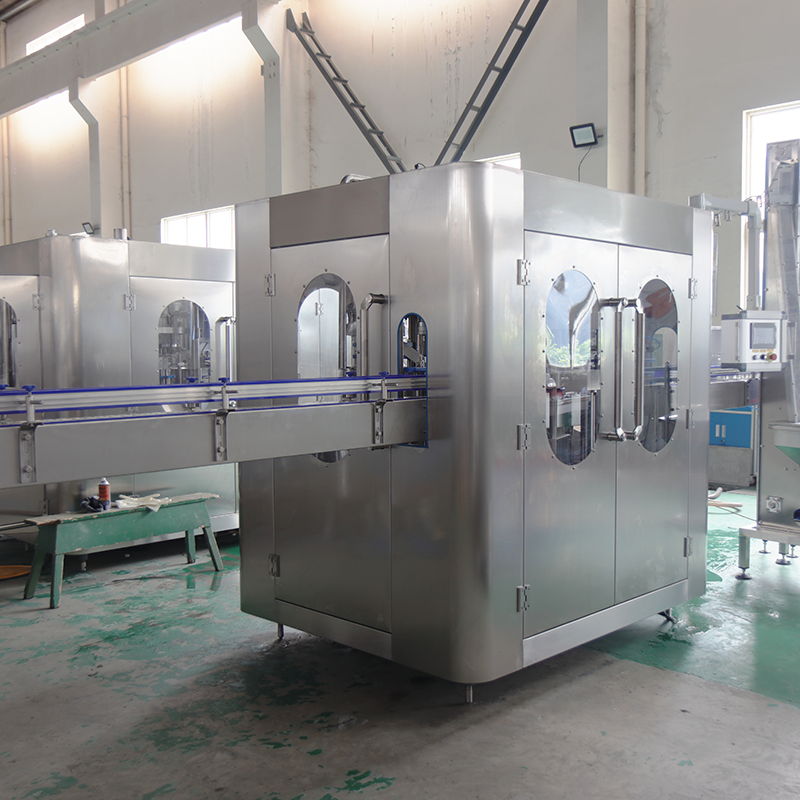

Hot Juice Filling machine
Applicable Products： Juices, tea drinks, functional drinks, milk drinks, etc.
Suitable Container： PET bottles of various shapes and capacities
Filling Modes： Contact filling or non-contact filling
Production Capacity：2000– 30000 BPH
Technical specification
| Model | R C G F 8 - 8 - 3 | R C G F 16 - 12 - 6 | R C G F 18 - 18 - 6 | R C G F 24 - 24 - 8 | R C G F 32 - 32 - 10 | R C G F 40 - 40 - 12 | R C G F 50 - 50 - 12 | R C G F 60 - 60 - 15 |
| Capacity ( for 500 ml ) | 2 5 0 0 - 3 0 0 0 B P H | 3 5 0 0 - 4 0 0 0 B P H | 4 5 0 0 - 6 0 0 0 B P H | 8 0 0 0 - 1 2 0 0 B P H | 1 2 0 0 0 - 1 4 0 0 0 | 1 5 0 0 0 - 1 8 0 0 0 | 2 1 0 0 0 - 2 4 0 0 0 | 2 6 0 0 0 - 3 0 0 0 0 |
| Suitable bottle shapes | P E T circular or square | |||||||
| Suitable bottle ( mm ) | 5 0 - 1 1 5 mm | |||||||
| Compress air | 0 . 3 - 0 . 7 Mpa | |||||||
| Suitable cap | Plastic screw cap | |||||||
| Washing meidium | Aseptic water | |||||||
| Total power ( KW ) | 3.91 | 4.61 | 4.61 | 5.41 | 6.41 | 9.63 | 12.5 | 15 |
| Weight ( KG ) | 2 0 0 0 | 2 5 0 0 | 3 5 0 0 | 4 5 0 0 | 6 0 0 0 | 8 0 0 0 | 1 0 5 0 0 | 1 3 0 0 0 |
| Dimension( L*W*H ) ( mm ) | 1 8 0 0 * 1 6 0 0 * 2 2 0 0 | 2 1 0 0 * 1 6 0 0 * 2 2 0 0 | 2 4 5 0 * 1 8 0 0 * 2 2 0 0 | 2 7 5 0 * 2 1 8 0 * 2 2 0 0 | 3 5 0 0 * 2 2 0 0 * 2 2 5 0 | 4 0 0 0 * 3 0 0 0 * 2 2 5 0 | 5 5 0 0 * 4 5 0 0 * 2 2 5 0 | 7 0 0 0 * 6 5 0 0 * 2 2 5 0 |
Detailed description
The Hot juice filling machine is designed for efficient, high-speed processing of a variety of juice products, integrating rinsing, filling, and capping into a single automated unit. It enhances production capacity with precise and rapid filling, accommodates various bottle sizes and shapes, and employs advanced technology to maintain juice quality. With a user-friendly control panel, robust construction, and a hygienic design for easy cleaning, it ensures reliable and safe operation. This machine is ideal for beverage producers seeking a versatile and dependable solution for high-volume juice production.
Advantages of the Automatic Liquid Filling Machine
High Efficiency: Automatic liquid filling machines significantly increase production speed and efficiency, reducing the time required to fill containers compared to manual methods.
Precision and Consistency: These machines ensure accurate and consistent filling volumes, minimizing product waste and ensuring uniformity across all filled containers.
Versatility: Designed to handle various types of liquids, from water and juice to more viscous substances, automatic liquid filling machines can be easily adjusted to accommodate different product requirements.
Hygiene and Safety: With automated systems, there is less human contact with the product, which enhances hygiene and reduces the risk of contamination. Additionally, safety features are often built into the machines to protect operators.
Scalability: Automatic liquid filling machines can be easily integrated into larger production lines and scaled up to meet increasing production demands.
Reduced Labor Costs: By automating the filling process, businesses can reduce labor costs and reallocate workforce to other areas of production that may require human intervention.
Ease of Operation and Maintenance: Modern automatic liquid filling machines come with user-friendly interfaces and require minimal maintenance, making them easy to operate and maintain over time.
Customizability: These machines can be customized to fit specific production needs, including different bottle sizes, shapes, and materials, providing flexibility for manufacturers.
